Home Categories Structural Components D-Tube Neck Beam™ [130]

Carbon Fiber D-Tube Neck Beam™

The Ultimate in Instrument Neck Bracing

The DragonPlate® Carbon Fiber D-Tube Neck Beam™ has been specifically designed to stabilize instrument necks with its unique D-Tube profile. The D-Tube Neck Beam™ significantly increases bending and torsional stiffness and weighs less than the wood it replaces! Builders also say that the D-Tube significantly improved the tone of their instruments.

D-Tube Beside Routed Guitar Neck

D-Tube Inserted into Guitar Neck

D-Tube in Finished Guitar Neck

Learn More

Filter and Sort

Results: 8 of 8

Reset Filters Filters

Scrolling Stacked

Results: 8 of 8 Reset Filters View Products

Sort Direction

Ascending
Descending

Clear (2)

Sort By

sample
sample2

Clear (2)

Length

Clear (2)

Width

0.5"
0.75"
5"

Clear (2)

Height

0.39"
0.45"
0.5"

Clear (2)

Approx. Weight

2.11 oz
0.11 lb
0.112 lb
0.152 lb
0.385 oz
0.432 oz
1 oz
1.028 oz

Clear (2)

Filter and Sort Sort By Name	Price	Finish	Length	Width	Height	Max Temperature	Fiber Modulus	Approx. Weight
FA-STRD.75-CRADLE Carbon Fiber Reinforcement D-Tube Cradle - 0.75" $82.50* Finish: Length: Width: Height: Max Temperature: 140 F Fiber Modulus: Standard (33 Msi) Approx. Weight: 0.432 oz	$82.50					140 F	Standard (33 Msi)	0.432 oz
FA-STRD.75-TCRADLE Carbon Fiber Reinforcement D-Tube Tee - 0.75" $110.00* Finish: Length: Width: Height: Max Temperature: 140 F Fiber Modulus: Standard (33 Msi) Approx. Weight: 1 oz	$110.00					140 F	Standard (33 Msi)	1 oz
FA-STRD.50x.39x6 Carbon Fiber Straight D-Tube .5" x .39" x 6" $44.00 Finish: Texture/Texture Length: 6" Width: 0.5" Height: 0.39" Max Temperature: 140 F Fiber Modulus: Standard (33 Msi) Approx. Weight: 0.385 oz	$44.00	Texture/Texture	6"	0.5"	0.39"	140 F	Standard (33 Msi)	0.385 oz
FA-STRD.50x.45x16 Carbon Fiber Straight D-Tube .5" x .45" x 16" $82.50 Finish: Texture/Texture Length: 16" Width: 0.5" Height: 0.45" Max Temperature: 140 F Fiber Modulus: Standard (33 Msi) Approx. Weight: 1.028 oz	$82.50	Texture/Texture	16"	0.5"	0.45"	140 F	Standard (33 Msi)	1.028 oz
FA-STRD.75x.50x16 Carbon Fiber Straight D-Tube .75" x .5" x 16" $93.50 Finish: Texture/Texture Length: 16" Width: 0.75" Height: 0.5" Max Temperature: 140 F Fiber Modulus: Standard (33 Msi) Approx. Weight: 0.112 lb	$93.50	Texture/Texture	16"	0.75"	0.5"	140 F	Standard (33 Msi)	0.112 lb

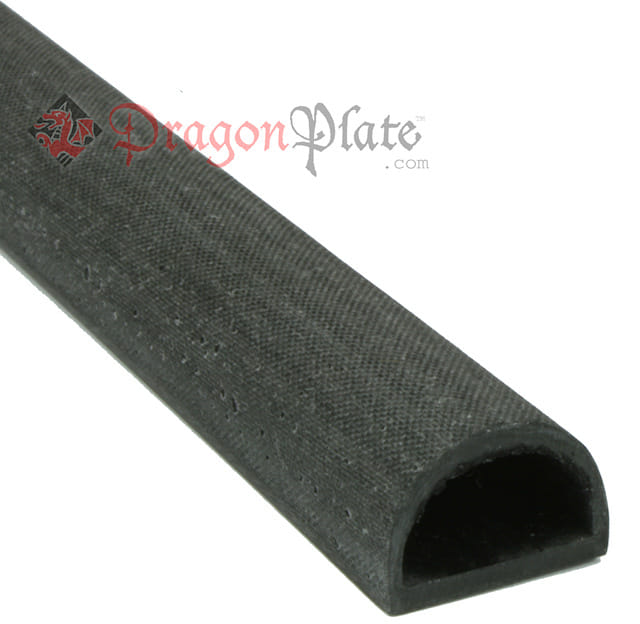

FA-STRD.75x.50x20 Carbon Fiber Straight D-Tube .75" x .5" x 20" $104.50 Finish: Texture/Texture Length: 20" Width: 0.75" Height: 0.5" Max Temperature: 140 F Fiber Modulus: Standard (33 Msi) Approx. Weight: 0.152 lb	$104.50	Texture/Texture	20"	0.75"	0.5"	140 F	Standard (33 Msi)	0.152 lb
FA-TPRD.75x.50x20 Carbon Fiber Tapered D-Tube .75" x .5" x 20" $110.00 Finish: Texture/Texture Length: 20" Width: 0.75" Height: 0.5" Max Temperature: 140 F Fiber Modulus: Standard (33 Msi) Approx. Weight: 0.11 lb	$110.00	Texture/Texture	20"	0.75"	0.5"	140 F	Standard (33 Msi)	0.11 lb
FA-NECK-REINF-RTD Cello Neck Brace $285.00 Finish: Texture/Texture Length: 14" Width: 5" Height: 0.5" Max Temperature: 140 F Fiber Modulus: Standard (33 Msi) Approx. Weight: 2.11 oz	$285.00	Texture/Texture	14"	5"	0.5"	140 F	Standard (33 Msi)	2.11 oz
8 Products Products per page 10 10 20 50 100 1
