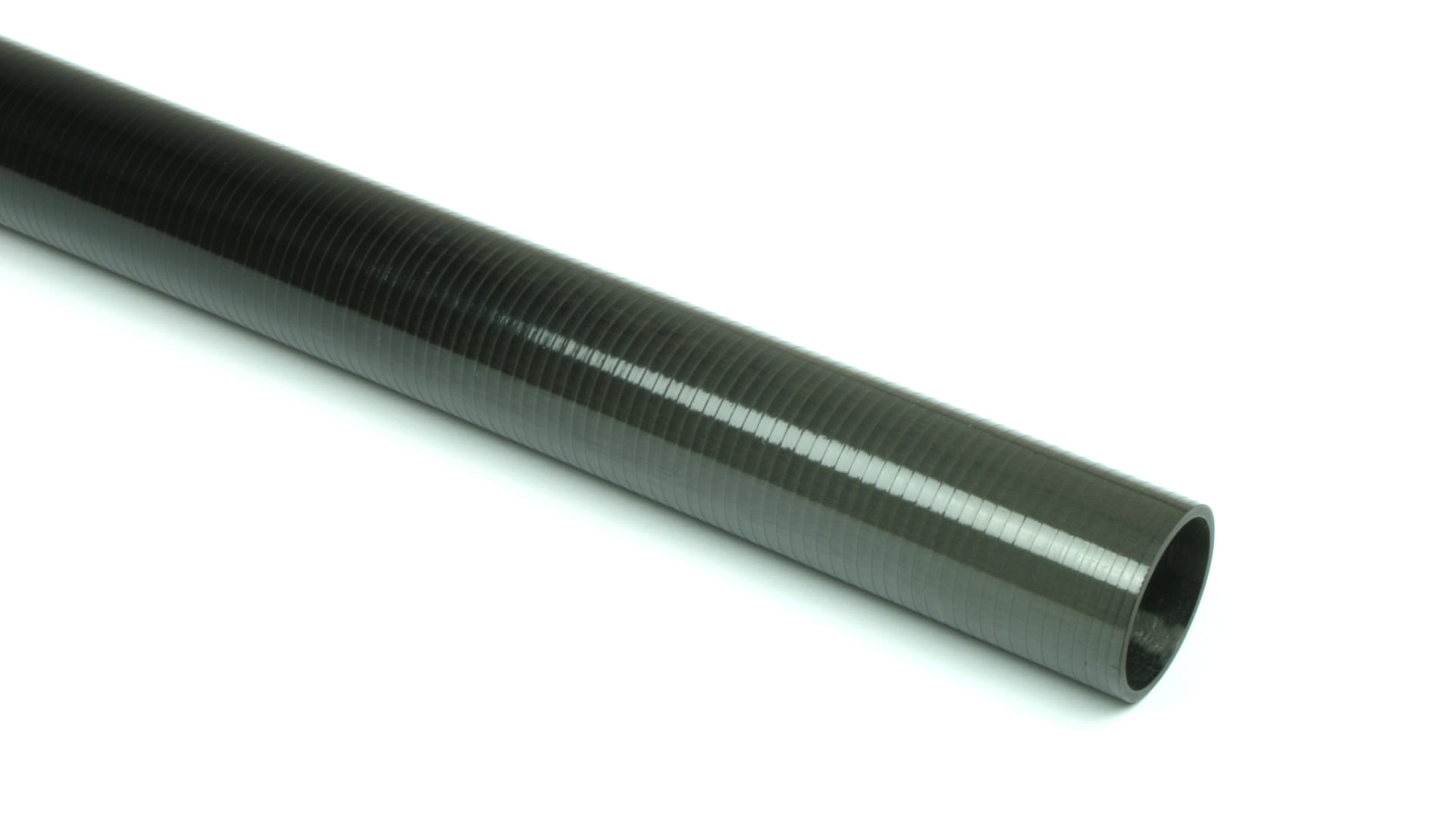

Carbon Fiber Roll Wrapped Uni Tube ~ 0.625" ID x 72", Gloss Finish

$85.11
SKU: FDPT.625*.049*72-C

This high strength to weight carbon fiber tubing is fabricated from unidirectional carbon fiber prepreg. The unidirectional layers are oriented to provide high bending stiffness and axial strength, as well as high hoop strength (resistance to crushing from a side load). This economical product is ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other application where low weight and high stiffness are essential. These tubes are made from standard modulus unidirectional prepreg, cello wrapped for a gloss finish.



SPECIFICATIONS

  • Fiber Modulus: 33 MSI
  • Fiber UTS: 700 KSI
  • Tg: 250 f



0.625" ID x 0.045" wall

This high strength to weight carbon fiber tubing is fabricated from unidirectional carbon fiber prepreg. The unidirectional layers are oriented to provide high bending stiffness and axial strength, as well as high hoop strength (resistance to crushing from a side load). This economical product is ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and any other application where low weight and high stiffness are essential. These tubes are made from standard modulus unidirectional prepreg, cello wrapped for a gloss finish.



SPECIFICATIONS

  • Fiber Modulus: 33 MSI
  • Fiber UTS: 700 KSI
  • Tg: 250 f



0.625" ID x 0.045" wall

Products specifications
Length 72"
Wall Thickness 0.045"
Shape Round
Inner Diameter 0.625"
Outside Diameter 0.715"
Tube Finish Gloss
Ply Orientation Woven 0/90 and UD 0 and 90
Max Temperature 250 F
Fiber Modulus Standard (33 Msi)
Composition Solid CF (Woven and Uni Directional)
Approx. Weight

0.392 lb
Approx. Density 0.057 lb/in3
