Rules to hold to: none of DragonPlate®'s Kevlar sheet products — solid, core, or hybrid — are rated for ballistic or armor applications. The user is responsible for testing and certifying any product for a specific application requirement, including impact or ballistic performance claims.

Frequently asked selection questions

What's actually different between the Carbon/Kevlar Hybrid sheet and the Kevlar Core sheet?

The hybrid sheet weaves carbon and Kevlar fiber together through the entire thickness of the laminate, producing a single material with blended properties — tougher than solid carbon fiber, stiffer than solid Kevlar, but not matching either material at its own strength. The Kevlar Core sheet is a sandwich construction instead: carbon fiber skins carry the bending stiffness (nearly matching a solid carbon fiber sheet), while an all-Kevlar core between those skins absorbs impact and resists puncture. If the priority is staying as close as possible to solid-carbon-fiber stiffness while adding toughness, the Kevlar Core sandwich is the more targeted choice. If the application calls for a single homogeneous laminate with blended properties throughout — including at a cut edge — the hybrid sheet is the better fit.

When do I need Solid Kevlar instead of one of the hybrid or core options?

When toughness and impact resistance are the dominant requirement and reduced stiffness is an acceptable tradeoff. Solid Kevlar sheets are built from an all 0/90 woven Kevlar laminate — significantly tougher under impact than carbon fiber, but less rigid, and more difficult to machine. They are not rated for ballistic applications; any impact-resistance claim beyond general toughness requires independent testing and certification by the user for their specific application.

Are Kevlar sheets harder to cut and machine than carbon fiber sheets?

Yes, across all three constructions. Kevlar's toughness — the same property that gives it impact resistance — also makes it more resistant to clean cutting than carbon fiber. Standard carbide or diamond-grit tooling still applies, but expect more tool wear and a slower feed rate than with a comparable carbon fiber sheet, and back the cut with sacrificial support to control fraying at the edge.

Do I need the prepreg version or the standard version?

Choose prepreg when the application needs a higher service temperature — the prepreg Kevlar and Kevlar-core lines are rated to 250°F versus 140°F for the standard epoxy constructions — or when tighter, more consistent fiber-volume control matters more than cost and stock-size flexibility. The prepreg lines are currently offered in a narrower range of stock sizes (24"×24" and 24"×36") than the standard epoxy lines; larger prepreg panels are available by custom quote.

Can I get a custom thickness or a thicker Kevlar core?

Yes. Solid Kevlar sheets are available up to 4'×8' and 1/4" thick by quote, and Kevlar Core sheets can be built with thicker cores or custom skin thicknesses. Contact DragonPlate® for a custom quote in either case — both fall outside the standard stocked sizes shown above.

What finish options are available on the colored Kevlar/carbon veneer?

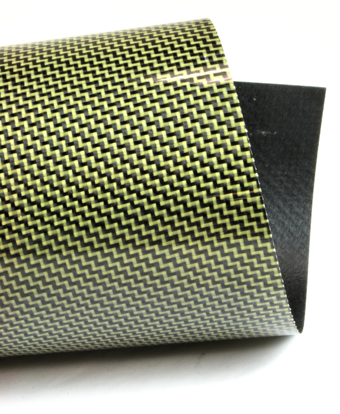

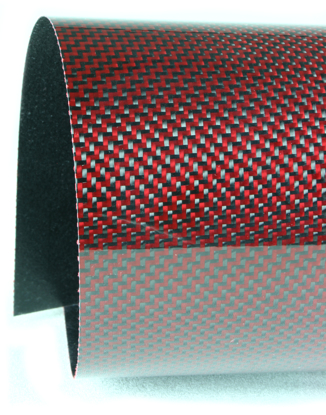

The twill-weave Kevlar/carbon veneer is available in blue, red, or yellow (paired with black), in gloss or matte finish, with or without an adhesive backing. This is a decorative surface veneer rather than a structural laminate — for structural toughness plus a Kevlar/carbon look through the full thickness, specify the solid hybrid sheet instead.

Sizes, Customization & Ordering

What is the largest sheet available?

Standard stocked Kevlar and Kevlar-hybrid sheets run up to 48"×96". Solid Kevlar sheets can be custom-ordered up to 4'×8' with thicknesses up to 1/4"; Kevlar Core sheets are available with custom core thickness and skin thickness by quote.

Do you offer CNC cutting and custom fabrication?

Yes. CNC cutting, custom sheet sizes, and specialized laminate schedules are available through Element 6 Composites for all three Kevlar constructions. Contact DragonPlate® for a quote — custom Kevlar work typically carries a longer lead time than standard carbon fiber sheet customization given the material's toughness.

Ordering basics

The listed price covers the sheet itself — shipping, taxes, and handling are calculated separately at checkout. Payment is prepaid by credit card, check, or wire; approved buyers may qualify for Net 30 terms. Bulk pricing is available by quote for larger orders.

Working with Kevlar Sheets

What adhesive should I use to bond Kevlar sheets?

The same structural adhesives recommended for DragonPlate®'s carbon fiber sheets apply — 3M Scotch-Weld epoxies (2216 B/A, DP420, DP460NS, and others) and LOCTITE EA-series epoxies. Lightly sand the bonding surface before adhesive application, as with any DragonPlate® laminate.

Are there limitations to know before I buy?

None of DragonPlate®'s Kevlar, Kevlar-hybrid, or Kevlar-core sheet products are rated for ballistic or armor applications — the user is responsible for testing and certifying suitability for any specific application, including impact-resistance claims. Standard epoxy constructions are rated to 140°F; only the prepreg Kevlar and Kevlar-core lines reach 250°F. As with carbon fiber sheet stock, these laminates are not thermoformable.

Company & Quality

Are DragonPlate® Kevlar sheets made in the USA?

Yes. DragonPlate® is a brand of Allred & Associates Inc., manufactured at the company's ISO 9001:2015-certified facility in Elbridge, New York. DragonPlate® uses first-quality materials only, never off-spec.
